线式视觉激光打标机,刻字机



建模后可在线式自动激光打标,工件随意摆放,无需模具固定定位,降低人工成本和治具成本,提高打标效率。适用于各行业在线式激光打标需求,做到无人值守全自动打标。


所属分类:

激光打标机

图片名称

详情介绍

线式视觉激光打标机

型号:DS-LMM-20/30/50
类型:激光打标
建模后可在线式自动激光打标,工件随意摆放,无需模具固定定位,降低人工成本和治具成本,提高打标效率。适用于各行业在线式激光打标需求,做到无人值守全自动打标。

功能特点:
1、可保存任意多产品模板,生产时直接调用即可;
2、打标轨迹采用CCD视觉自动捕捉,简单、方便、高精度;
3、无须夹具,只要放平即可,产品可任意角度摆放;
4、可以与前后生产线直接对接,或者采用振动盘上料;
5、打标完毕后,可以自动检测,对未打标工件可输出报警剔废信号;
6、光束质量好,适合于更加精细打标;
7、不需水冷却,无易损件,无耗材,运行成本低;
8、流水线采用钢结构焊接制造,运行稳定可靠,控制柜面板与工控机容为一体,美观高档。
9、适用范围:各种材料的零部件上打印标记,如电子通讯产品、仪器仪表、精密零件、五金工具、生活用品、食品包装等,标记内容可以是产品型号、生产日期、序列号、商标图案、条形码和二维码等。



Type: laser marking

After modeling, online automatic laser marking can be carried out, and workpiece can be placed freely, without fixed positioning of the mould, reducing labor cost and fixture cost, and improving marking efficiency. It is suitable for the online laser marking requirements of various industries, and achieves automatic marking without being on duty.

Functional characteristics:

1, you can save any product template and call it directly in production.

2. The marking track is automatically captured by CCD vision, which is simple, convenient and high precision.

3, no fixture, as long as it can be flat, the product can be placed at any angle.

4. It can be directly butted with the front and rear production lines or be fed by vibrating tray.

5. After the marking is completed, it can automatically detect and output the alarm and reject signals for the non marking parts.

6, the beam quality is good, suitable for more precise marking.

7, no need for water cooling, no wearing parts, no consumables, and low running cost.

8, the production line is welded by steel structure. The operation is stable and reliable. The control panel and the industrial control computer are integrated, beautiful and high-grade.

9. Scope of application: print marks on parts of various materials, such as electronic communication products, instruments, precision parts, hardware tools, daily necessities, food packaging and so on. The marking content can be product model, production date, serial number, trademark pattern, bar code and two-dimensional code.



DS-LMM-20/DS-LMM-50



相机像素Camera pixel

1200万像素12 megapixels

打标精度 Marking precision
  (相机视场Camera range180mmx180mm)

0.1mm

打标幅面Marking amplitude

180mm×180mm

打标深度Marking depth

0.01-0.3mm(视材料)

打标线宽Marking line width

0.05-0.1mm

打标激光速度Marking laser speed

≤7000mm/s

激光波长Laser wavelength

1.064μm

焦距focal length

160mm(160mm-185mm)

字符高度character height

0.5~100mm

输出方式Output mode

脉冲激光,外置红光指示器

Pulsed laser, external red indicator

最大激光输出功率Maximum laser output power

20W/30W/50W

标记内容Tagged content

任意中英文、数字及图形、条形码、二维码等。

Arbitrary Chinese and English, figures and graphics, barcode,   two-dimensional code, etc.

外形尺寸Shape size

流水线式

Line type

流水线Assembly line

标配1.2米,可定制

 standard configuration 120 cm,   Customizable

编程方式Programming mode

打标软件中编辑Edit in marking software

对位方式Counterposition

视觉自动对位Visual automatic alignment

模板存储量memory capacity

硬盘无限量存储Unlimitless storage of hard disk

操作系统operating system

Windows 10

软件系统software system

点盛视觉系统软件V1.0(激光打标专用)

The visual system software V1.0 (special for laser marking)

控制方式control mode

PC控制、液晶显示器 PC control, liquid crystal   display

Z轴移动范围Z axis moving range

100mm

Z轴驱动Z axis drive

步进电机Stepper motor

移动速度Moving speed

XY/Z:0.1-800/350 mm/Axis

电源Power

220V±10%,50Hz±5%。

整机功率Machine power;

≤500W。

Temperature of Working environment

0 ~40 °C

工作环境湿度

Humidity of working environment

20~90% (无结露)(no dew)

机台尺寸

Machine size

1250mmx800mmx1500mm

机台总重量

100kg

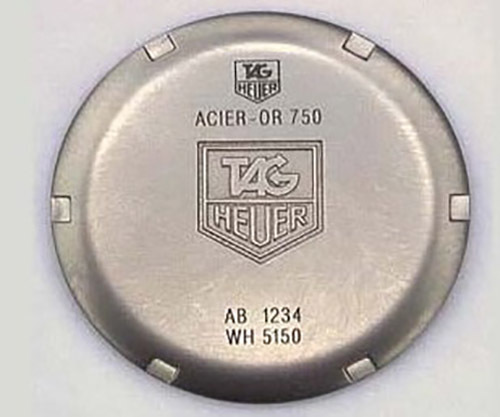

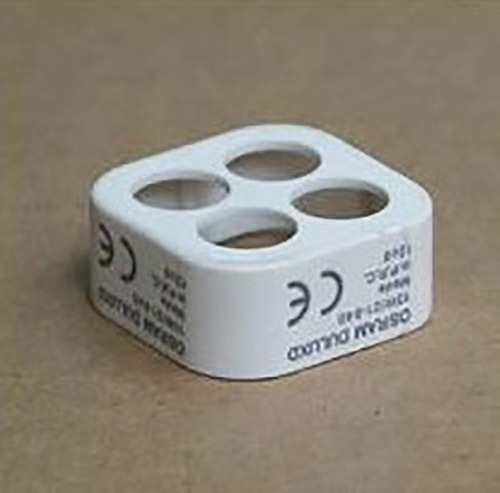

激光打标机样品:
